Inicio > Equipos para Publicidad > Impresora de sublimación y DTF > 250W Oil Mist Collector Fume Extractor Industrial Air Cleaning Equipment 350m³/h Capacity for DTF Powder Shakers

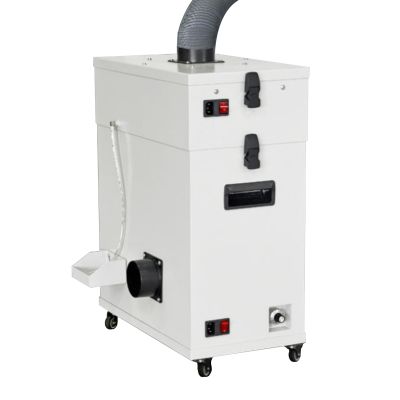

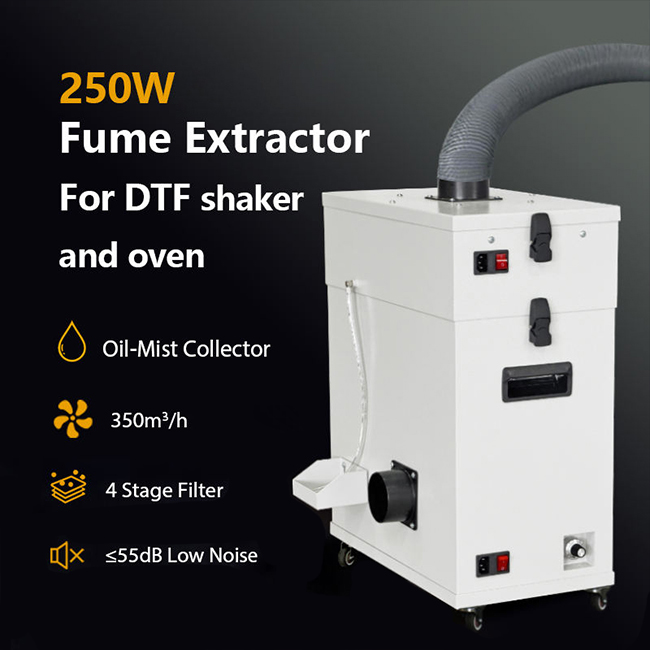

250W Oil Mist Collector Fume Extractor Industrial Air Cleaning Equipment 350m³/h Capacity for DTF Powder Shakers
  • 250W Oil Mist Collector Fume Extractor Industrial Air Cleaning Equipment 350m³/h Capacity for DTF Powder Shakers
  • 250W Oil Mist Collector Fume Extractor Industrial Air Cleaning Equipment 350m³/h Capacity for DTF Powder Shakers

Ver imagen más grande y otras vistas (con zoom)

250W Oil Mist Collector Fume Extractor Industrial Air Cleaning Equipment 350m³/h Capacity for DTF Powder Shakers



Codigo del articulo:SIT-FEF-DY350

  • Precio Unitario : Mex.$ 9,502/set   (Aviso de Descuento) (Tiempo entrega 69-89 días)

    • Por Favor Eliga el Tipo

    Por Favor Eliga el Tipo: Smoke Purifier Filter A Filter B Filter C Filter D
  • Cantidad: set(s) Costo Total : MXN Mex.$9,502

  • Peso de Envio: 48.4lb (22kg) freightFlete

  • Submit your order online to get membership points, a proforma invoice will be sent to you after you submit the order.
    Add to Cart
Buyer Protection

250W Oil Mist Collector Fume Extractor Industrial Air Cleaning Equipment 350m³/h Capacity for DTF Powder Shakers

Why Your DTF Printing Workshop Urgently Needs a Professional Fume Extractor?

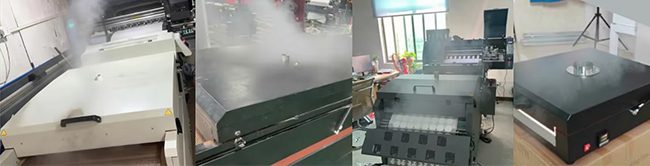

During DTF printing, the heating process releases a large amount of oil mist and fumes that contain:
- VOCs (Volatile Organic Compounds): Can cause headaches and nausea; long-term exposure may damage the nervous system.
- Oil-based fine particles (PM0.3–PM2.5): Too small for normal masks to block, leading to respiratory irritation and coughing.
- Sticky oil mist: Deposits on equipment surfaces, contaminates printed products, and shortens printer lifespan.

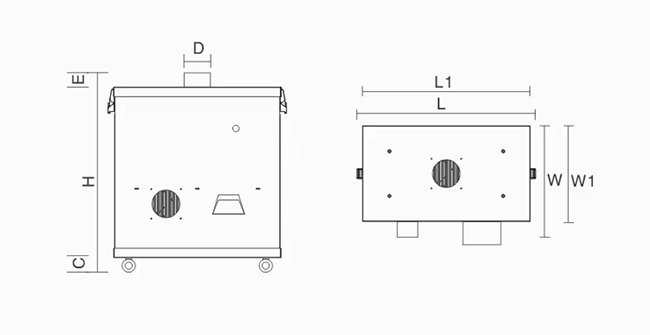

Specification:

Model DYO-35
Air vent size 75mm
L1 450
C 45
E 40
W1 260
Air volume 350m³/h
Static pressure 2000PA
Power 250W
Rated voltage 220V
Static <55dB

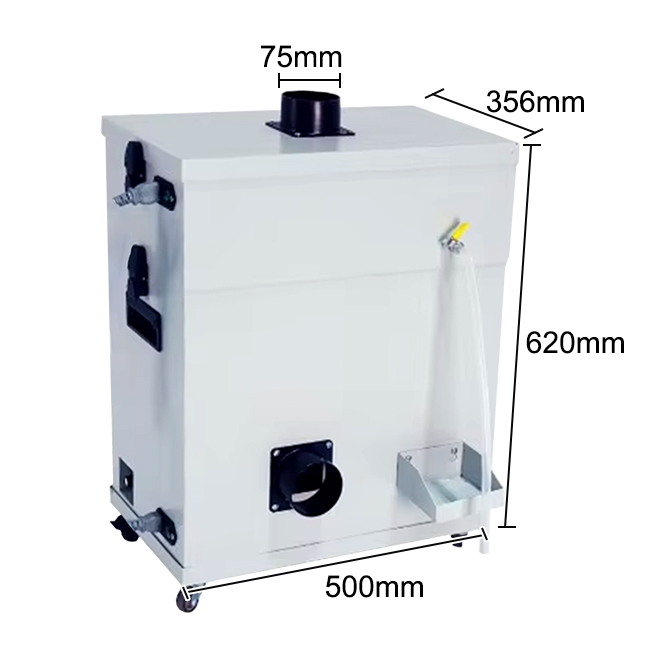

Size 500x356x620mm
Weight 21kg

Details:

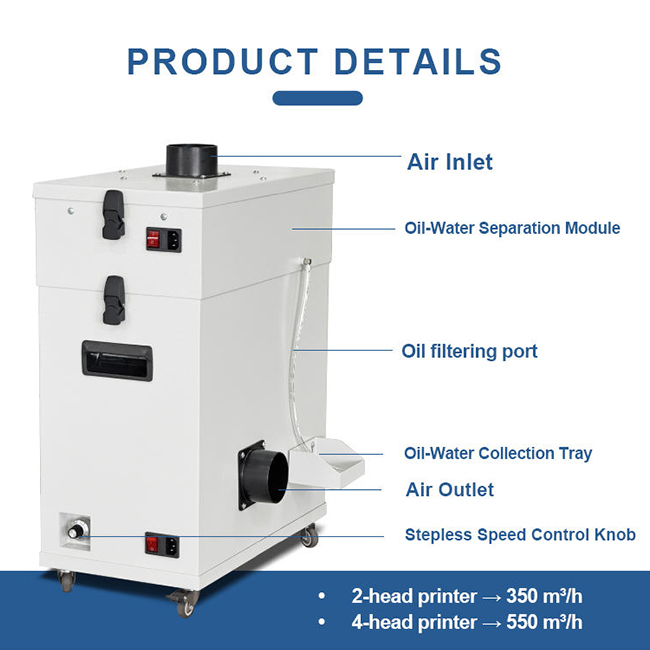

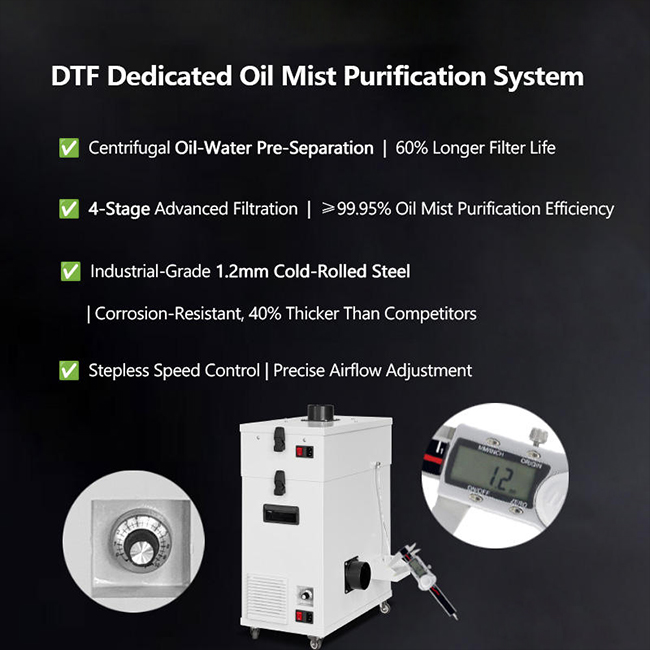

A Professional Purification System Tailored for DTF Printing
This purifier is specially designed for DTF printers, providing a scientific four-step purification process to effectively solve
oil mist and odor problems produced by the Shaker and Oven.

Four-Step Efficient Purification Process:
Powerful Capture
Oil mist and fumes generated by the Shaker and Oven are accurately captured and drawn into the system through flexible suction
hoses.
Centrifugal Separation
The high-temperature oil mist first passes through a high-speed centrifugal module, where most liquid oil and water are forcefully
separated and drained through a dedicated oil outlet.
Four-Stage Precision Filtration
The pretreated air is then purified through multiple filters:
Washable cotton → Primary filter → Medium filter → HEPA13 + Activated carbon filter
Each layer removes finer particles and harmful VOCs step by step.
Clean Air Discharge
Driven by a high-performance DC motor, the purified air is discharged smoothly — ensuring a fresh, odor-free working environment.


Industry Pain Points — Perfectly Solved by Our DTF Fume Extractor

Common Issue Our Solution
❌ No oil-water separation → Filter clogs within 2 weeks ✅ Centrifugal oil-water separation module → Removes 30% liquid oil in advance, extending filter life by 50%
❌ Insufficient airflow (only 100–300 m³/h) — weak suction, poor purification effect ✅ True tested airflow → 350/550 m³/h accurate performance
❌ 2-3-stage filter → Odor remains ✅ Four-layer deep filtration system → Eliminates VOCs and micro particles completely，purification efficiency ≥99.7%
❌ Noise 60–70 dB ✅ Brushless DC motor → Stepless speed control, ultra-low noise (0–55 dB)
❌ Thin 0.8mm shell → Easy deformation & oil leakage ✅ 1.2mm cold-rolled steel housing → Corrosion-resistant, oil-proof, 40% thicker than competitors

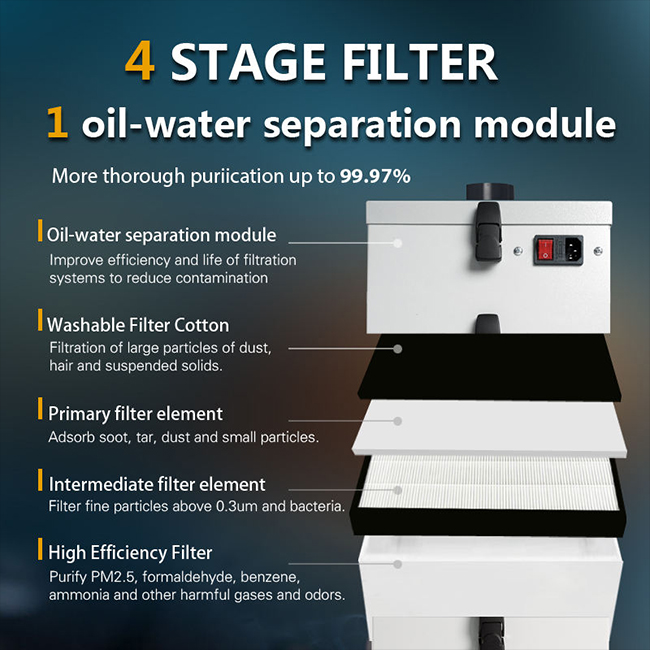

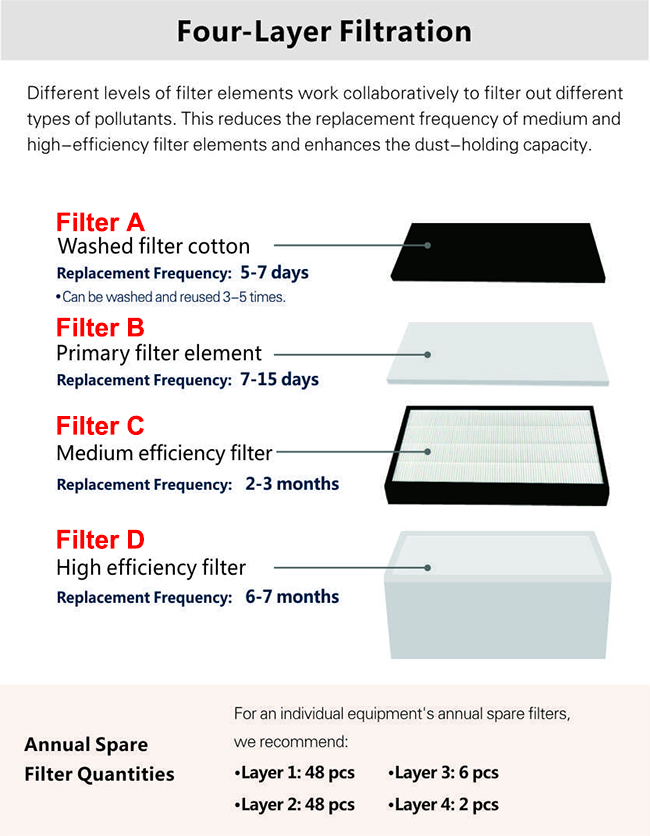

Four-Layer Deep Filtration System
Washable Cotton: Filtration Large ink dust & coarse particles，Low-cost maintenance.
Primary Filter: Filtration ≥5μm particles，Captures small oil droplets.
Medium Filter: Filtration Fine mist & suspended particles，High adhesion & efficiency.
HEPA + Activated Carbon: Filtration VOCs, odor, PM0.3，Medical-grade purification, odor elimination.

Brushless DC Motor
★ Stepless Speed Control – Easily adjust the airflow with a knob to match your working conditions and save energy.
★ Low Noise Operation – Quiet working range between 0–55 dB.
★ Long Service Life – Runs continuously for over 8,000 hours with no performance decay.

Industrial-Grade Construction — Built for Heavy-Duty DTF Applications
★ 1.2mm thick cold-rolled steel body, 3× stronger than standard machines.
★ Laser-bent, seamless structure ensures zero oil leakage.
★  Anti-corrosion coating suitable for high-temperature and high-humidity environments.
