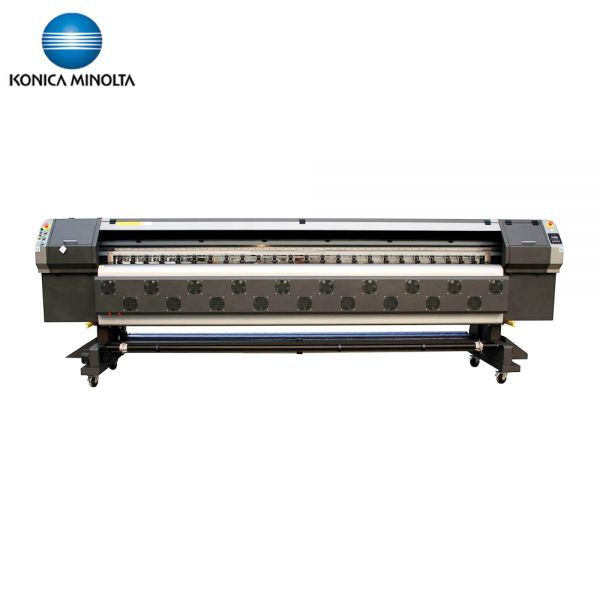

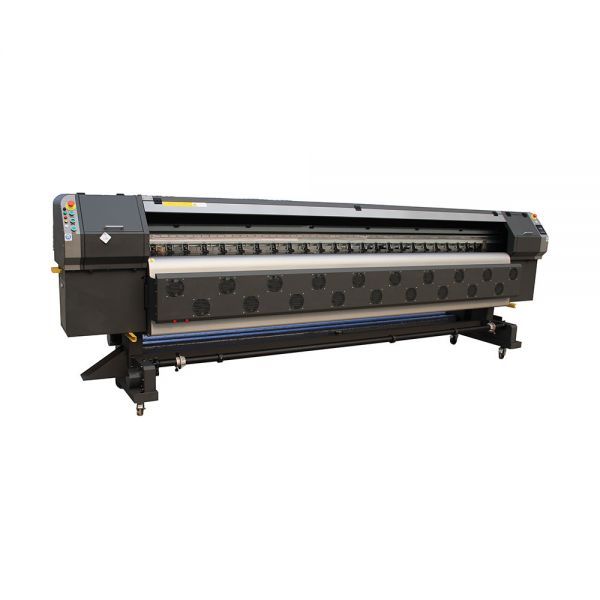

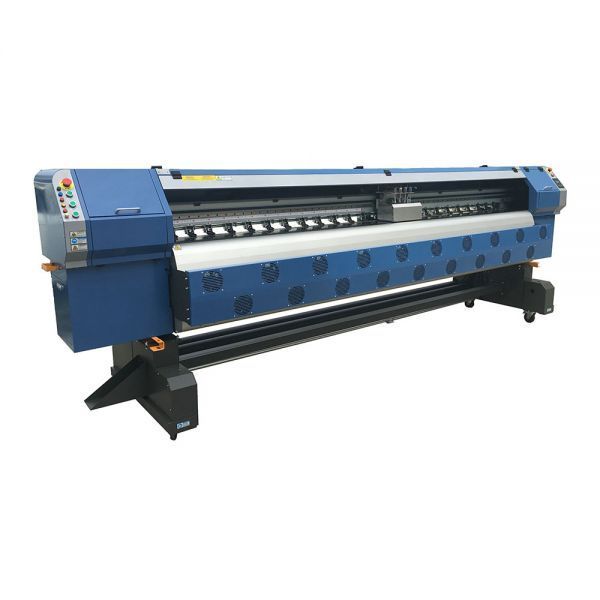

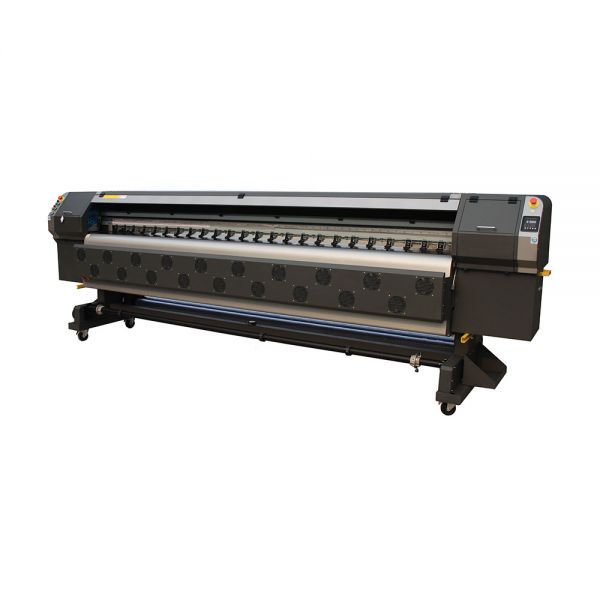

Impresora Perfect Color C8 de 4/8 cabezales Konica KM512i-30pl
  • Impresora Perfect Color C8 de 4/8 cabezales Konica KM512i-30pl
  • Impresora Perfect Color C8 de 4/8 cabezales Konica KM512i-30pl
  • Impresora Perfect Color C8 de 4/8 cabezales Konica KM512i-30pl
  • Impresora Perfect Color C8 de 4/8 cabezales Konica KM512i-30pl

Ver imagen más grande y otras vistas (con zoom)

Impresora Perfect Color C8 de 4/8 cabezales Konica KM512i-30pl

Precio CON IVA,Pero no Incluye Pago Paypal.

   |   833 Transacciones

Codigo del articulo:SIT-LFIP-C8

  • Precio : Mex.$ 248,000/set   (Aviso de Descuento) (en existencia)

  • Por Favor Eliga el Tipo

  • Cantidad: set(s) Costo Total : MXN Mex.$248,000
  • Peso de Envio: 1870.0lb (850kg) freightFlete

  • Submit your order online to get membership points, a proforma invoice will be sent to you after you submit the order.
    Add to  Cart
Buyer Protection

C8 Configuraciones
Sistema de alimentacion de tinta de presion positiva
Rail de acero de 4.2M para el carrito
34 pcs de pinch roller
Cama de impresion de alta calidad de 200mm ancho

Marca de partes:
Panel BYHX-A-KM512i-4H
Servo motor LEADSHINE
Baleros Japoneses NSK
Guia linear THK
Cinturon de 15MM Italiano Megadyne
Conector de tubo American Value
Tren Aleman IGUS
Cable de corriente Aleman IGUS
Sensor Autonics Koreano
Bomba de tinta SPD
Valvula solenoide JYY

Configuracion:
Impresion trasera, calentamiento delantero
Vacio o cama de impresion ajustable
Carrito tipo elevador
Proteccion de cabezal unico
Doble fila de ventiladores
Luces LED en la posicion de limpieza y cama de impresion
Sistema de alimentacion
16*6cm Columna principal del cuerpo
12mm Y eje de movimiento
Soportes XY de acero

Marca de las partes:
Tablero BYHX-A-4H-KM512i
Servo motor Japonés PANASONIC 400W AC
Cojinete Japonés
NSK
Tren de arrastre Alemán IGUS
Cable de alimentación Alemana IGUS

Cinturón Italiano de 15MM Megadyne

Conector de tubos Americano Value Plastics

Guía lineal Taiwanesa Hiwin con dos silenciadores deslizantes PC

Bomba de tinta JYY DC



Válvula Solenoid JYY

Configuración:

Cuerpo de Impresora Clásica

Cama Impresora amplia 200mm de alta calidad

Grande viga de metal

Sistema calentador inteligente infrarojo

Luces LED en posición de limpieza y cama de impresora

Ventiladores de doble filaCalentadora de impresión

Superior frontal de la cama del cabezal

Sistema de suministro de tinta presión positiva

Sistema de purga de tinta seperada

Tipo de elevación de carro

Pila única para protección de cabezal

Sistema de alimentación

Specification:

Model C8
Printheads KM512iLNB-30PL KM512iLNB-6PL
4H 8H 4H 8H
Print Speed Draft 96m²/h 192m²/h 64m²/h 128m²/h
Production 64m²/h 128m²/h 48m²/h 96m²/h
High quality 46m²/h 92m²/h 32m²/h 64m²/h
Ink Solvent
Max print width 3200mm
Ink volume 5000cc/color
Hearter System Front heater,Printing bed heater,rear heater,head heater 30°C - 65°C
Drying System Drying fans
Auto feeding/taking up system Standard feeding system(equipped). take up system(optional)
Operation environment Temperatura: 15-35°C, Humidity: 40%-65%,50Hz,220v(±10%) >20A
N.W. 730KGS
G.W. 900KGS
Complete 7.65CBM
Separate 4.57CBM



Los parámetros anteriores son solo como referencia, dependiendo del ancho de la impresión, hay una división del 10% ~ 20%.



Details:

Carriage Position System: 180DPI Grating PositioningSystem
Carraige Lifting System: Manual Screw Type Carraige Lifting System
Printhead Protection System: Carriage Anti Colision System
Main Girder Structure: Square Pipe Welds
Carriage Beam: 4200mm Thickened Sheet Metal Beam
Linear Guide Way: Taiwan Hiwin linear guide with two pcs mute sliders
Pinch Roller: 34PCS High Precision Aluminum MadePinch Roller





Printing Bed: 200mm Wide Printing Bed
Material Suction System: Adjustable Vacuum Suction System
LED Lighting System: Printing Bed Lighting System
Heating System: Rear Cover-Printing Bed-Front Cover
X Driving Mode: Belt&Pulley
Y Driving Mode: 20mm Diameter Steel Axis
XY Motor Bracket: Aluminum Machined Brackets







Printhead Cleaning System: Individual lnk Purging System
Subtank Heater: Subtank Heater
Side handle: High quality handle, easy to move the machine






Ink Supply System: Positive pressure ink supply system                                           Mains lnput System: Independent System Power lnput And Heating Power Input




Image Drying System : Intelligent IR Heating Drying System Carriage Capping System : Capping station

Right side
4 in1 Heating Control System: Unified Operation, Fast And
Effective
Ink Supply Alarm Lamp: Flash And BUzz when Ink Supply
Is Abnormal, Avoid TheProblems

Left side
Start/ stop: One Click Start/Stop To Prevent Misoperation
Home Sensor: Metal lnduction, Long Life
Purging Button:KCMY,Purging Seperately.
